Cirrus SR20

FLIGHT SIMULATION TRAINING DEVICE

Prices & Standard Features

Actual Cirrus Perspective+ by Garmin

Hardware and software operates and functions exactly like the aircraft for maximum transfer of learning.

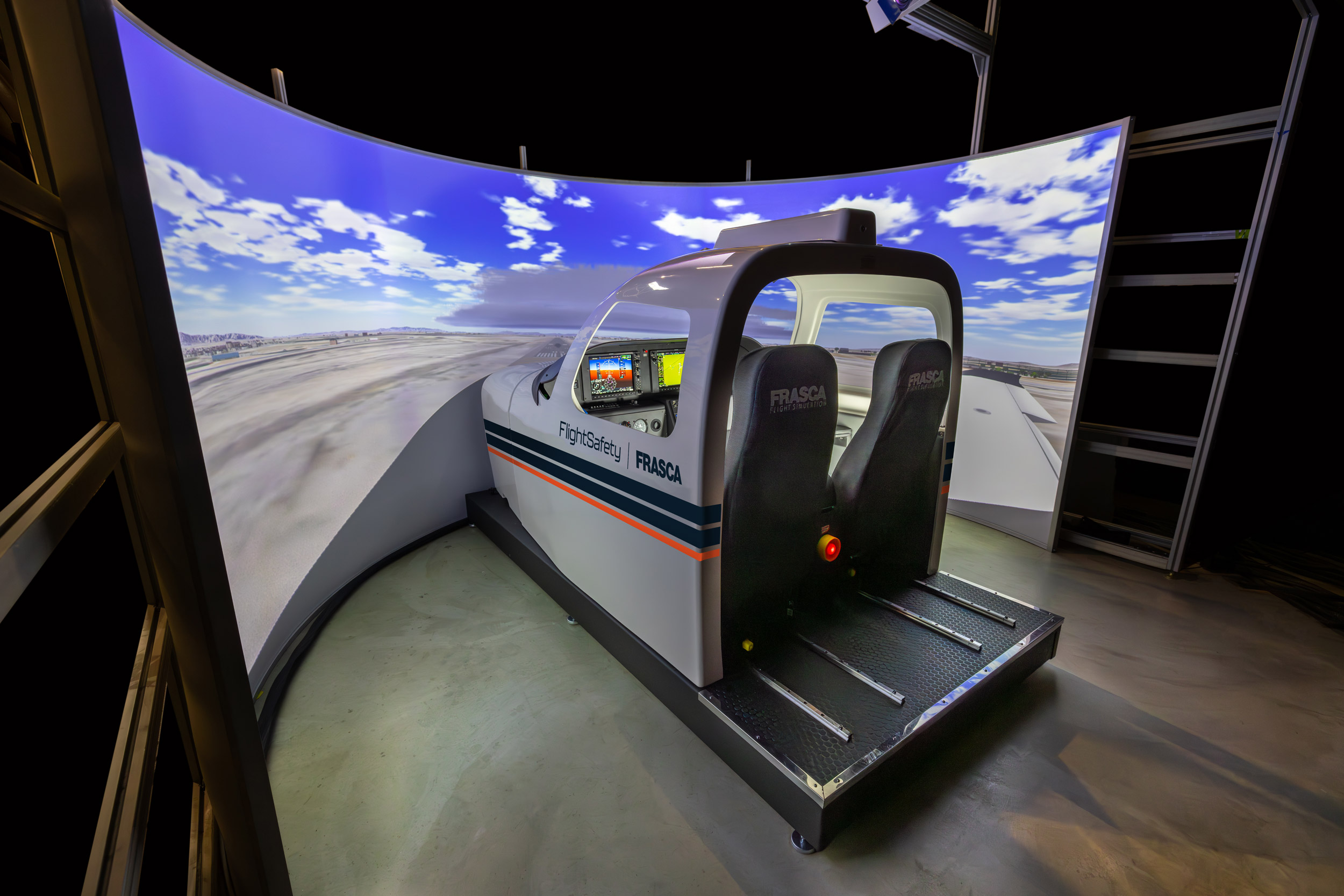

Flight Deck

Accurate representation of the aircraft with operational knobs and switches in their correct positions, and a fiberglass shell that is similar in size and shape as the actual aircraft for a realistic learning environment.

Flight / Aerodynamics Model

Based on actual aircraft flight test data. Enables students to transfer a greater amount of learning from the training device to the aircraft.

Cirrus Landing Gear Simulator

Includes a Gear Switch and Position Lights. Pilots are able to simulate retracting and extending landing gear. Instructors may select various failure modes to simulate mechanical failures of each gear, or an indicator failure, so pilots may practice troubleshooting procedures.

Visual Display

Wrap-around, 220° horizontal x 57° vertical view outside the simulated aircraft of smoothly moving landscape, structures and sky creates the illusion and feeling of actually flying.

Laser-hybrid Projectors provide high quality image with significantly lower maintenance costs.

Cirrus Airframe Parachute System

The amount of resistance to pull the handle is the same in the AATD as in the actual aircraft; also provides visual feedback as to whether it was a successful CAPS deployment.

Active Control Loading

Pressures on all flight controls change with airspeed and configuration to provide the pilot with realistic feedback on the controls just like when flying the actual aircraft.

Equipped per US Specifications ... $398,000.00

Does not include costs for shipping and installation

Cirrus-SR20-US

Download Price Sheet PDF

Real Perspective+ Hardware & Software

(2) GDU-1050A for PFD & MFD
System Software Version 2647.N8
SafeTaxi and FliteCharts

Simulated Components

GFC-700 Integrated Autopilot with Electric Trim & Electronic Stability Protection and Under Speed Protection
GMC-707 Autopilot Mode Controller
GCU-479 Control Unit Keypad
GMA-350 Audio Panel w/Marker Beacon/Intercom
GTX-335R Transponder-Mode S w-TIS
GIA-63W NAV/COM/GPS/WAAS w/GS #1
GIA-63W NAV/COM/GPS/WAAS w/GS #2
GEA-71 Engine/Airframe computer
GSU-75 Air Data, Attitude & Heading Reference System
GMU-44 Magnetometer
King KN-63 DME

Engine & Propeller Modeling

Lycoming IO-390-C3B6
3-blade, constant speed

Navigation Databases

Regional Jeppesen database for G1000
World-wide Jeppesen database for Visual, Host & IOS
G1000 update procedures same as actual aircraft

Circuit Breakers

All circuit breakers are installed, some associated with emergency procedures may be “tripped” so the associated equipment becomes inoperative

Instructor Operator Station

FRASCA’s exclusive Simplicity™ IOS
2 Touch Screens on desk
Scenario Building Tool
Maintenance and Calibration Tools

Visual System Databases

Worldwide runways accurately placed for over 10,000 airfields with representative surface types, markings, and lighting
Taxiway layouts (including markings and signage), windsocks, and aprons for many airfields
Worldwide terrain elevation and imagery, ocean coastlines, major roads, major railroads, and major powerlines

Sound System

A multi-channel amplifier boosts sounds recorded from the actual aircraft to several speakers placed throughout the cockpit
Headset jacks for Pilot, Copilot and Instructor allow communications

2 Year Warranty

Includes replacement or repair of defective parts, technical support, and remote diagnostics
Extended Warranty packages available

Approval

Approved as FAA AATD
Other approval levels available per options

Options Pricing

Garmin Enhanced Situational Awareness Package

$32,500.00

Includes Synthetic Vision, Terrain Awareness and Warning System (TAWS-B), and ChartView with Jeppesen’s Electronic Approach Plates
FAA Level 5 FTD approval

$28,500.00

Includes MQTG and on-site assistance during initial inspection
Motion Cueing System, High-Fidelity

Call For Price
Upgrade Standard Visual Display to Larger Spherical Screen with High Fidelity Laser-hybrid Projectors

$63,500.00
Compact Visual System

Call For Price

Replaces 3 projectors and large screen with 3 70” UHD TVs to fit within smaller rooms
Instructor’s Cab, semi-enclosed

$15,250.00

Equipped per International Specifications ... $416,000.00
